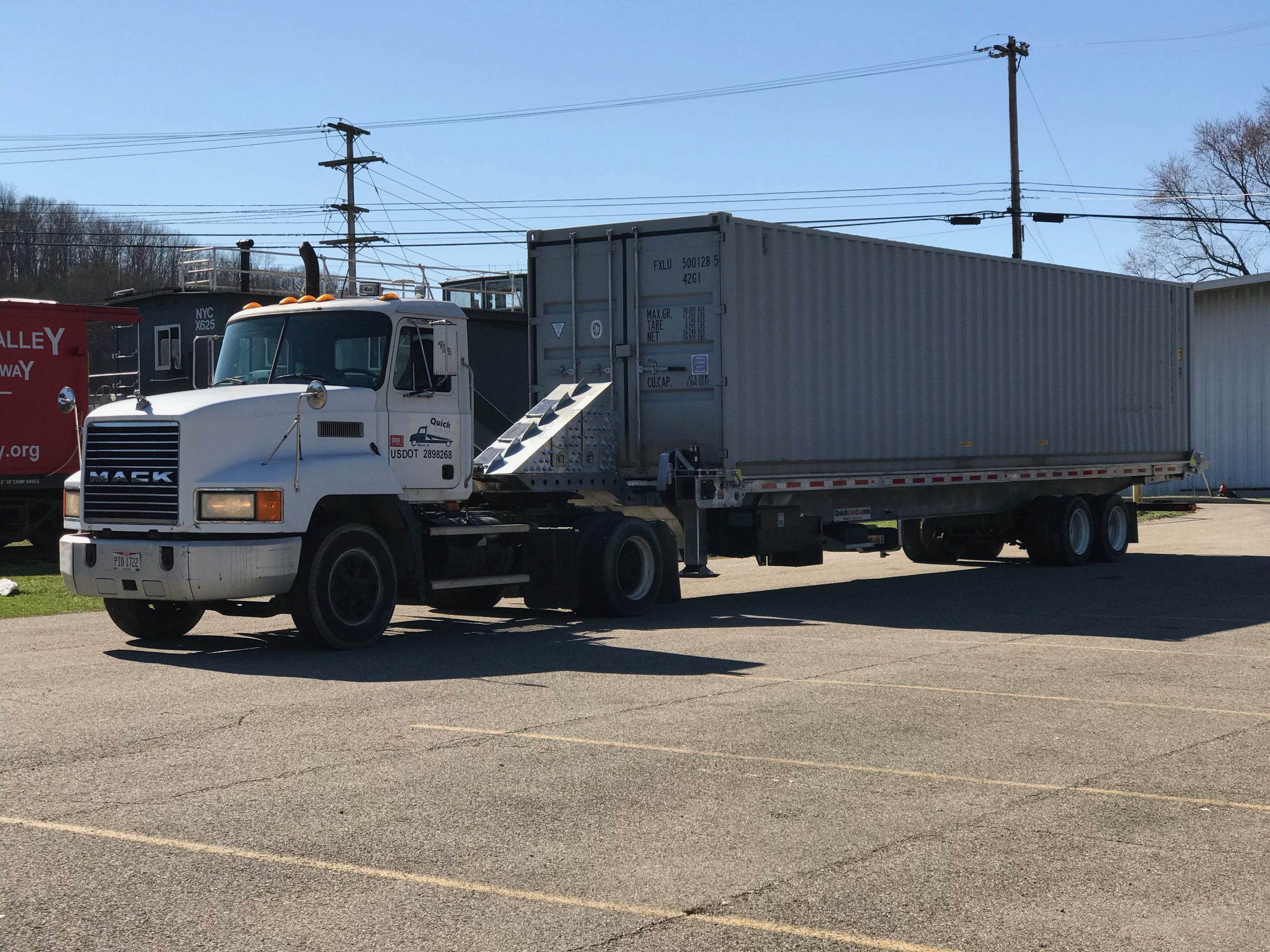

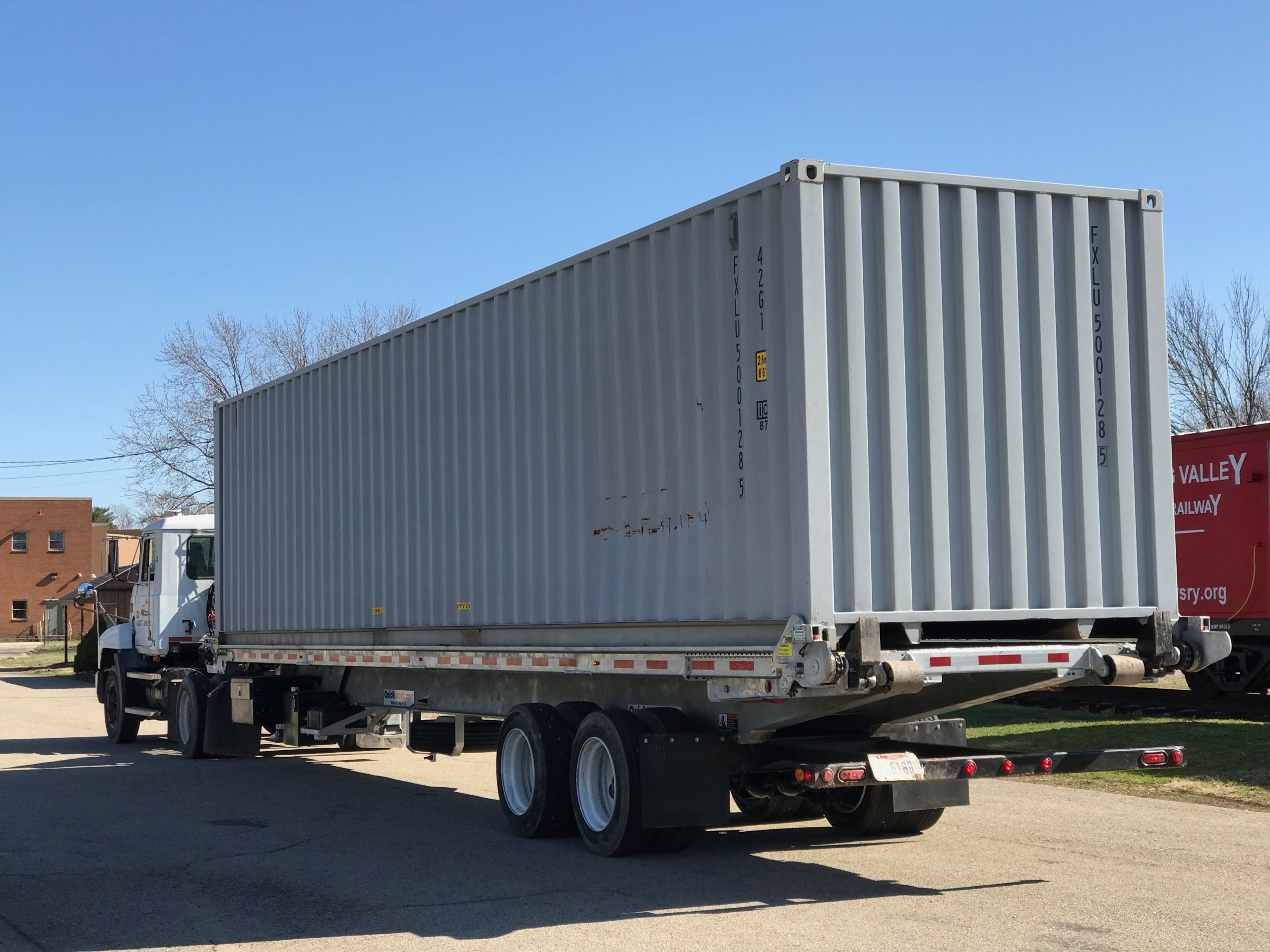

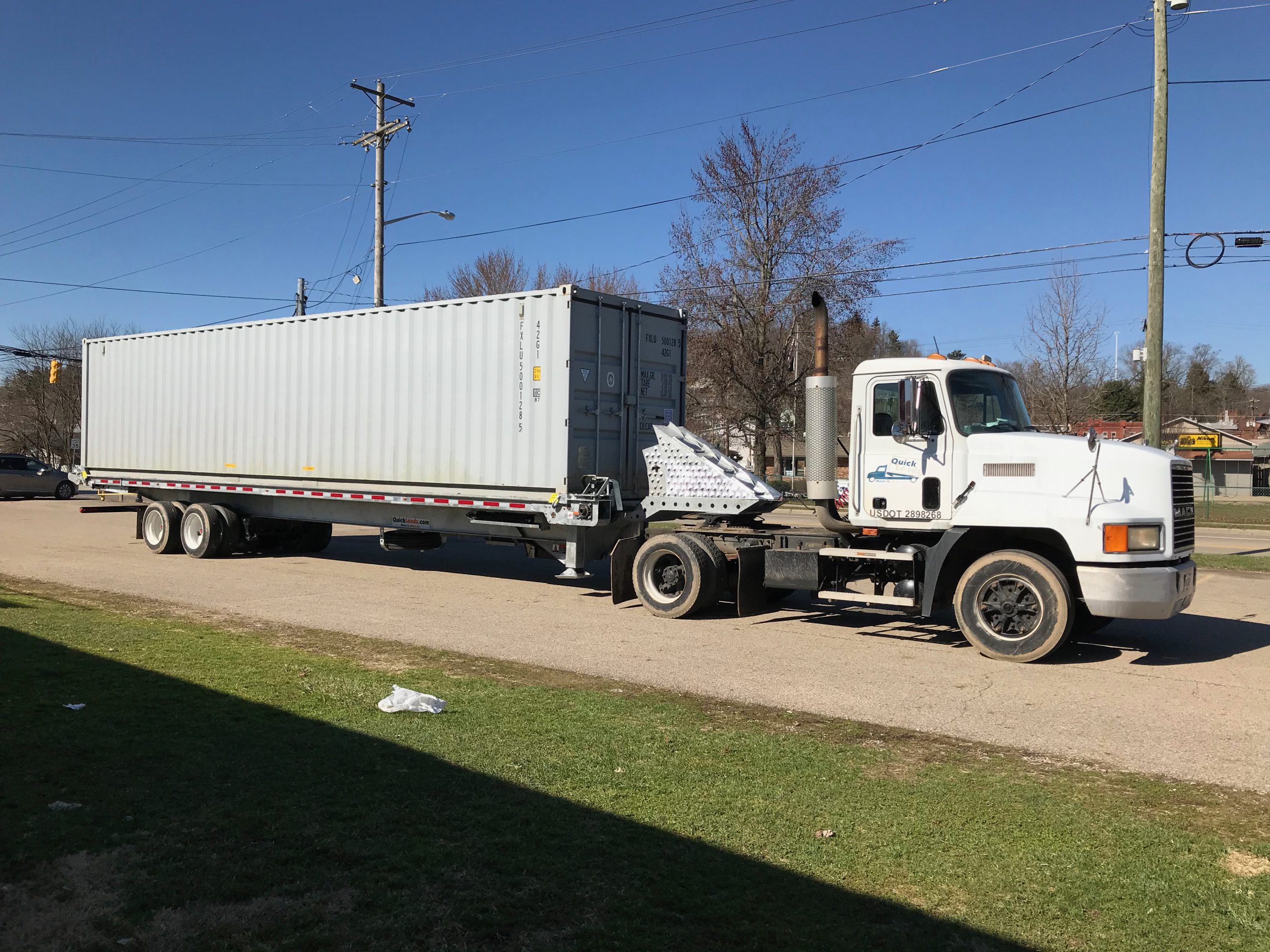

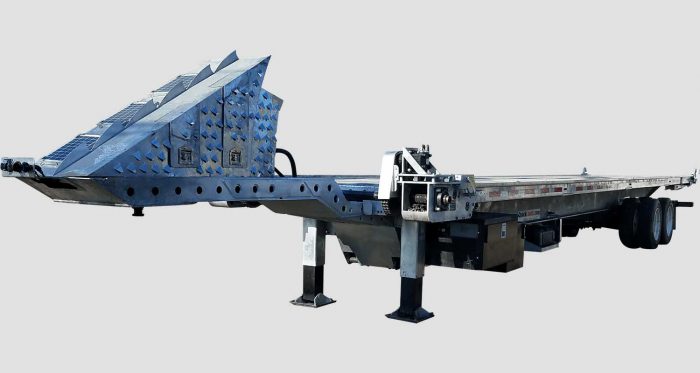

60k Super High 40

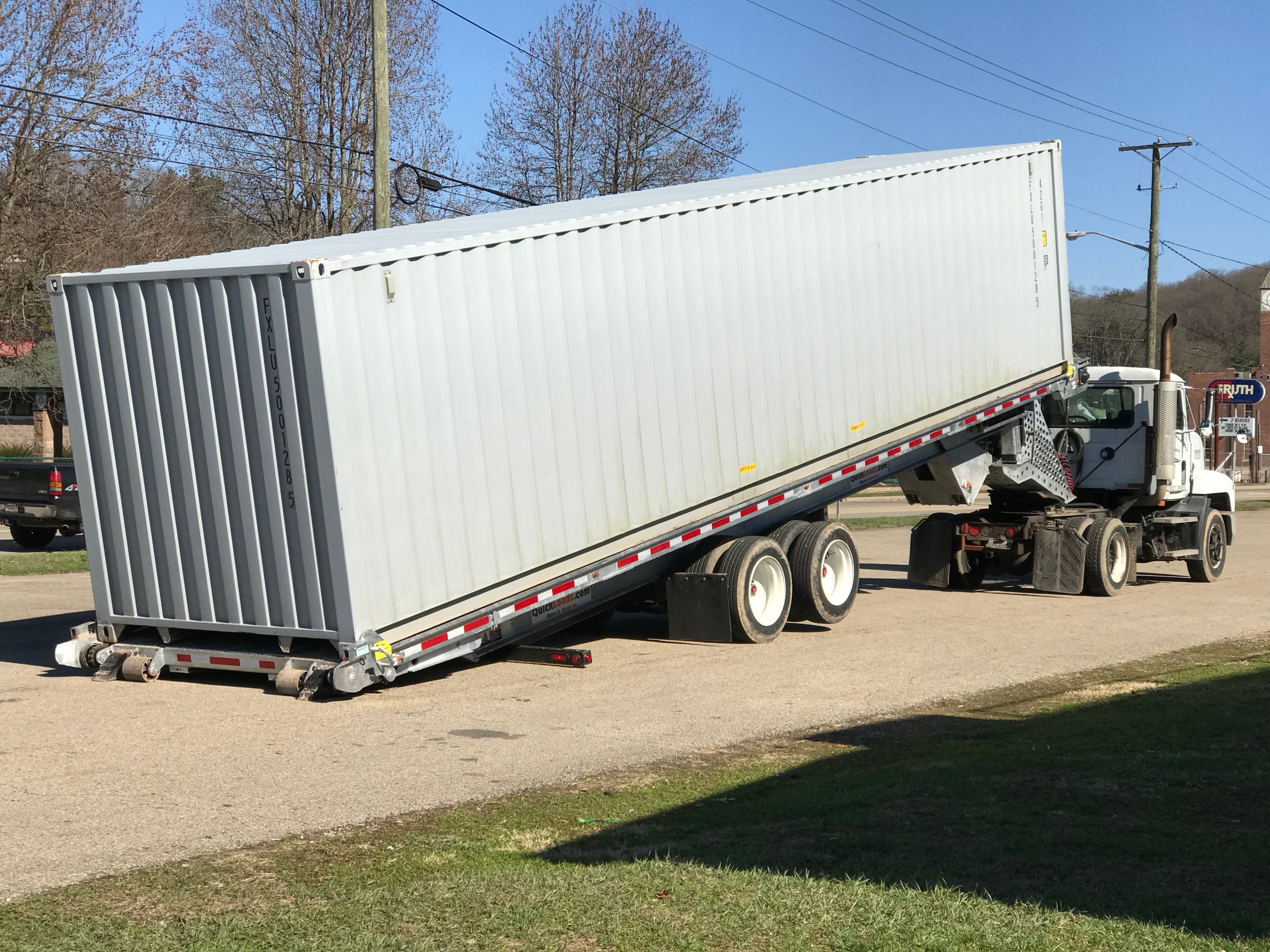

Move FULLY LOADED 40′ containers. Deliver at conventional loading dock height or at ground level.
- Deck Length: 40′
- Overall Length: 50′ 11″
- GVWR: 60,000 lb
- Curb Weight: 20,500 lb
- Payload Capacity: 39,500 lb
- Deck Height: 48″
Apply for Financing
| Overall Length | 50′ 11″ |
|---|---|
| GVWR | 60,000 lb |
| Curb Weight | 20,500 lb |
| Payload Capacity | 39,500 lb |
| Deck Height | 48″ |
| Decking | Treaded Plate Metal Decking |
| Jack Type | 2 Speed Screw |
| Hoist Type | Tilt and Slide |
| Load Angle | 10° |
| Brake Type | Air |
| Winch Capacity | 20,000 lb |
| Hydraulic Power Source | All-Electric Power Pack |
| Coupler | Fifth Wheel |
| Suspension | Slipper Leaf Spring |
| Tires | 255/70R22.5 (235/75R17.5 with 47.5” deck) |
| Main Frame | W16 × 50 lb. I-Beam |
| Side Rails | 7″ Continuous Bend |
| Cross Members | 5″ C-Channel 16″ oc |
| Tongue | Cold Formed Main Beam |
| Axles | 2 25,000 lb. Oil Bath Bearing |
| Conspicuity Striping | YES |
| Full Width Rear ICC Bumper | YES |
| LED Lights | YES |
| QuickLoadz Moving System | Dual Chain Drive; 6″ Driveway-Safe Rear Rollers; 2 Power Lift Wedges; Remote Smartphone Control |
